Play it safe - ATEX extension
NEU: mit erhöhtem Schallpegel
NEU: mit erhöhtem Schallpegel
Additional details
- Die Connection between the call station and the barrier is optionally via standard RJ45 network cable or via a 10-pin cable. All connections are monitored for interruption, i.e. a general fault is indicated at the fault output.
- The universal interfaces allow the barrier to be connected to any device.
- In addition, Leitronic offers a plug & play solution for Avire Memco.
- Ms Digifon offers a solution based on our Atex barrier.
| Slave station LMK70-ATEX Zone 0/20 | Order no: 121.0380 |
| ATEX-Barrier | Order no: 121.0390 |
| Slave station LMK70-ATEX Zone 0 | Order no: 121.0370 |
The Leitronic ATEX solution consists of a barrier that is installed in the machine room and a call station that can be used in the hazardous area.
Suitable for all Leitronic emergency call devices (EasyAlarm, Exicall, Nano, Mini) as well as third-party devices such as Avire Memco or Ms Digifon.
The specifications of the individual ATEX components in overview

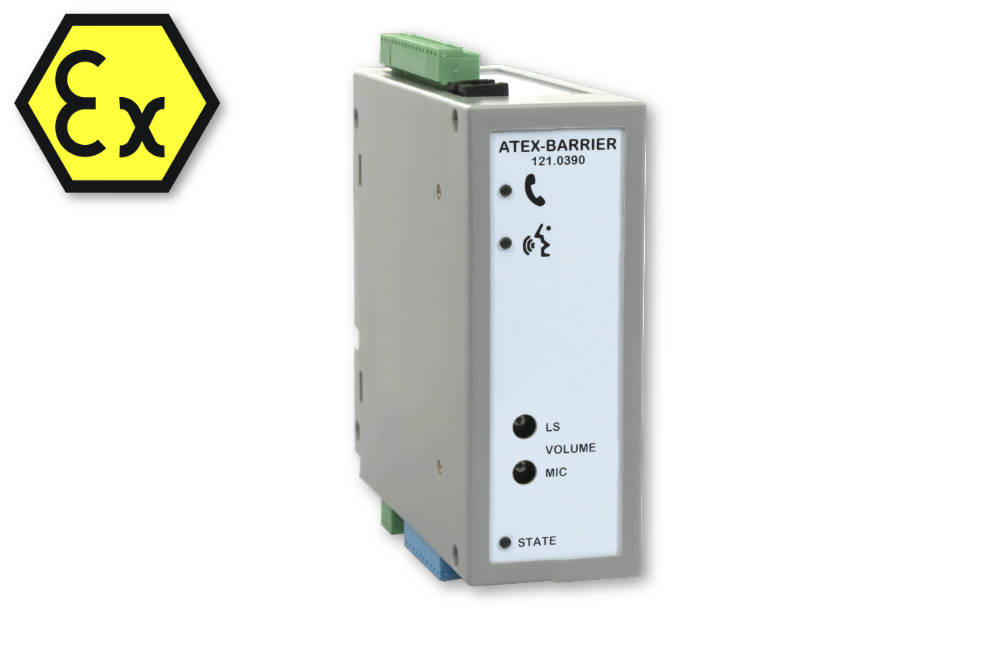

ATEX-Barrier

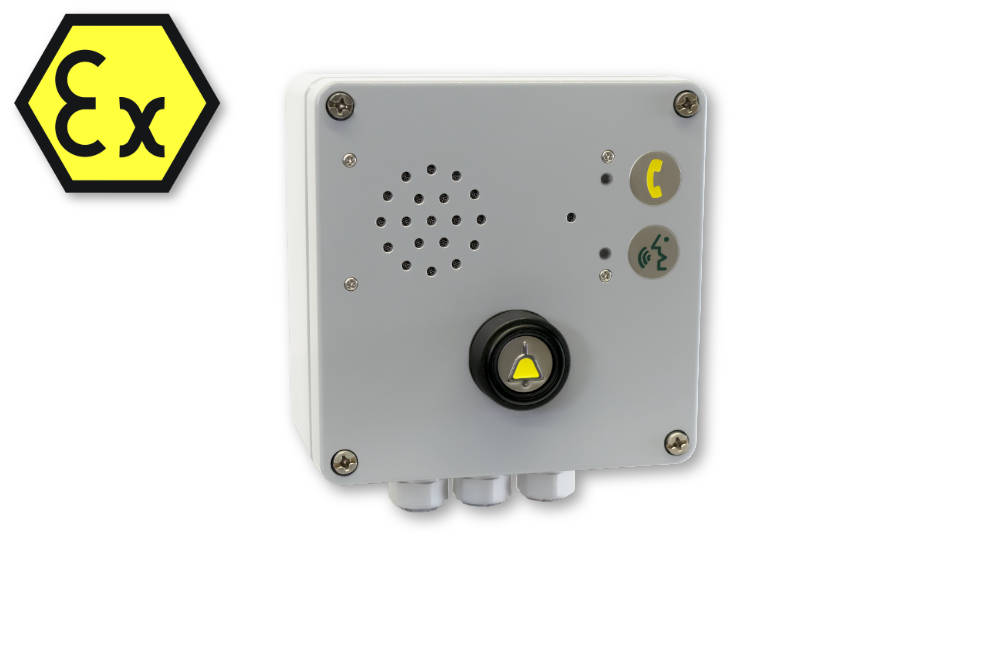

Slave station LMK70-ATEX Zone 0
Slave station LMK70-Atex zone 0/20
Housing for Slave Station EA-IP-EN70-EC
Emergency call button surface-mounted Version: NT-ATEX-AP Zone 0/20
Emergency call button surface-mounted Version: EA-IP-EC Zone 0
ATEX auxiliary loudspeaker 100V
ATEX barrier NSG/LTE wired in housing
100V audio amplifier with isolation converter
100V audio amplifier mounted in IP housing
All documents for the Leitronic ATEX extension for you to download
Our ATEX component overview and accessories
ATEX Barrier outside ATEX zone
Slave station: LMK70-ATEX Zone 0
Slave station: LMK70-ATEX Zone 0/20
Surface / flush mounting of the LMK70-ATEX zone 0 slave station
Housing for sub station
Emergency call button surface-mounted Version: NT-ATEX-AP Zone 0/20
Surface mount version: EA-IP-EC Zone 0
ATEX auxiliary loudspeaker 100V
ATEX barrier NSG/LTE wired in housing
Connection adapter RJ45 screw terminal (2TE DIN)
Audio isolating transducer (2TE DIN)
100V audio amplifier with isolation converter (4HP DIN)
100V audio amplifier pre-assembled in IP housing
Emergency power unit UPS12-CPU-IP
DIN rail power supply (1TE DIN)
Emergency power connection board EA-NSG-CPU (3TE DIN)
12V lead battery
DIN holder for battery
