Easy and quick to install elevator emergency call system. Occupies only 2 wires of the traveling cable.
Complies with EN81-28 and EN81-70 standards.
Additional details
0
IP-Version 4G / VoLTE | Order no: 100.080XBL |
DIN-Version 4G / VoLTE | Order no: 100.081XBL |
You can read the difference between the IP and the DIN version under the specifications tab
From 2024, all NANO systems will be delivered with the EA-LTE-DUAL
The new DUAL is fully compatible with Gateway and Nano installations and offers a wide range of additional functions.

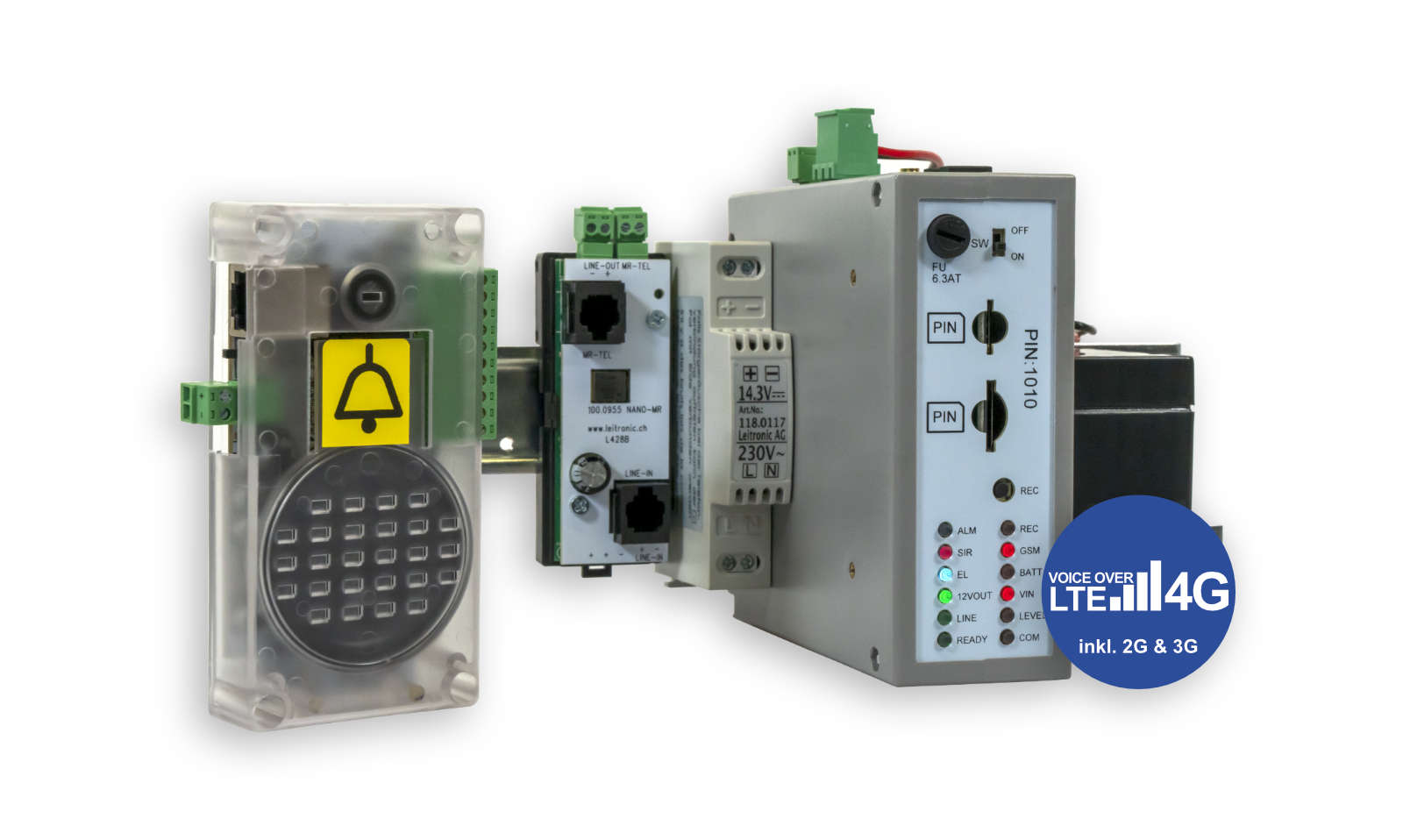

Leitronic System NANO
With only two wires in the pendant cable, the Nano intercom station is connected to the cellular receiver box.Fulfills EN81-28 and EN81-70 standards.
The emergency call or elevator emergency call via the mobile network is a cost-effective and efficient alternative to the fixed network.
A change of provider is possible at any time. The elevator can already be operated during the construction phase.

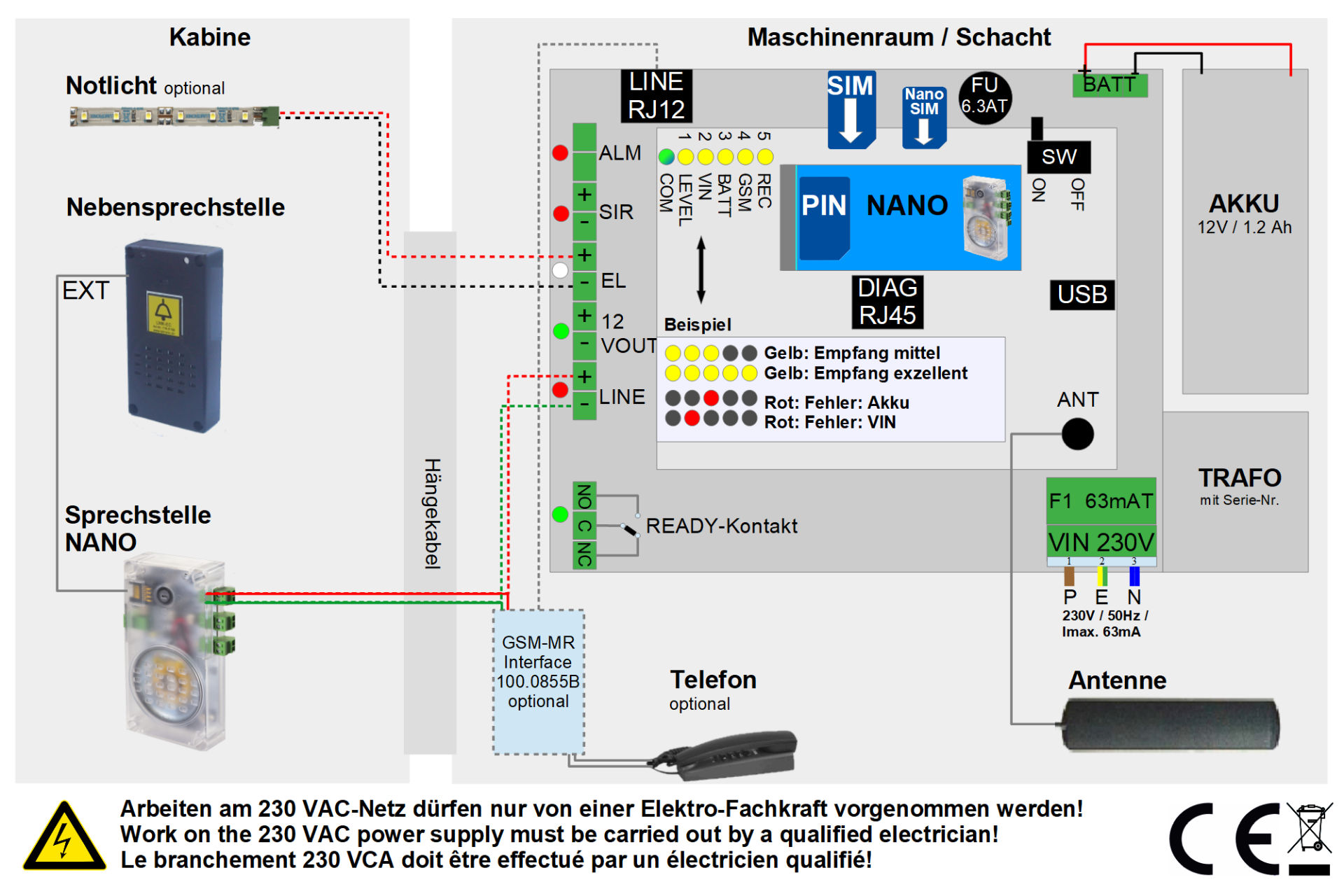

The 2-wire connection between interface and voice station transmits all signals (emergency call buttons, misuse suppression, alarm horn and connection to building management systems), voice connection, the supply of the status lights and an emergency light.
The Nano system can be easily configured via SMS or conveniently with the Leitronic APP or the Leitronic Portal.
The modular design guarantees cost-effective subsequent upgrades in just a few minutes.
IP and DIN version
Support for following networks
Standards
IP version
DIN version
- such as instructions, schematics, leaflets, etc.
Cabin Intercom stations
More accessories
Front panels for microphone units
Transparent front panel frame
LED emergency light 10cm, self-adhesive
LED emergency light 2x10cm, self-adhesive
IP67 LED screw
LED module, self-adhesive
EA-LMC70 extension unit
EA-LMC-EC sub-station below and above the cab
Adapter board EA-LMK-ETMA-NANO for Schindler control panels
LMK-ORONA
SIM card with 4G / VoLTE roaming* ideal for emergency elevator calls
Power supply
DIN switching power supply EA-ACDC-USV
DIN switching power supply EA-DCDC-USV
DIN switching power supply EA-DCDC-USVi
12V lead-acid battery
DIN holder for battery
Antenna material
Wall-mounted antenna
Directional antenna
Antenna extension cable
Datenmodule für verschiedene Aufzugs-Steuerungen
4xLAN-WIFI-IP for 4G/LTE
1xLAN WIFI for 4G/LTE
Data-Modul-DB9
Data-Modul-USB
Machine room communication
MR-Interface
Machine room telephone
12V-SIR
Easy and cost-effective upgrades of older devices from 2015 and old design delivered until the end of 2014.
Upgrade 2G / 3G to 4G
version from 2015
Upgrade 2G / 3G to 4G
implementation by the end of 2014
Your benefits summarised:
-
Wiring via only 2 cables
-
-
Cost-effective alternative to the landline network
-
-
Change of supplier possible at any time
-
-
Lift operation during the construction phase
-
-
Remote programming via SMS, APP and online portal
-
Easy Config
This app enables easy setup of Leitronic AG's System NANO emergency call system by generating and sending configuration SMS.
The app offers the following functions:
- Input of configuration details (especially phone numbers) via an intuitive input mask.
- Saving the history of already configured devices.
- Save configuration templates to manage a variety of nano devices.
- Setting device parameters via USB OTG cable (Android only)
Image Gallery App Easy Config
Android version
Image Gallery App Easy Config
